What Is Fine-Pitch Assembly?
As electronic devices continue to evolve toward smaller sizes and greater functionality, fine-pitch assembly has become a critical part of modern SMT manufacturing.
Fine-pitch assembly refers to the placement and soldering of electronic components with extremely small lead spacing, often below 0.5 mm. These applications require highly specialized solder paste formulations capable of delivering exceptional printing accuracy and soldering consistency.
Fine-pitch solder paste is specifically engineered to support advanced packaging technologies, semiconductor devices, and high-density PCB designs.
Learn more about our solder paste solutions:
https://ejustyou.com/products/
Challenges in Fine-Pitch SMT Production
Bridging
One of the most common issues in fine-pitch assembly is solder bridging, where excess solder creates unintended electrical connections between adjacent pads.
A high-quality fine-pitch solder paste helps minimize bridging by providing excellent printing definition and controlled solder spread.
Insufficient Solder
Small apertures can sometimes result in insufficient solder deposition, leading to weak or unreliable solder joints.
Fine-pitch solder paste is formulated to improve stencil release and ensure consistent solder volume.
Misalignment
As component spacing decreases, placement accuracy becomes increasingly important.
Optimized solder paste rheology helps support proper component self-alignment during reflow soldering.
Features of Fine-Pitch Solder Paste
Ultra-Fine Powder
Fine-pitch solder paste utilizes ultra-fine solder powder with tightly controlled particle size distribution.
Benefits include:
- Improved stencil printing
- Enhanced deposition accuracy
- Better aperture release
- Reduced defects
Excellent Stencil Release
Consistent stencil release is critical for achieving repeatable printing results in high-volume production.
Consistent Printing Performance
Stable viscosity and flux chemistry provide excellent print consistency across long production runs.
Supported Component Types
BGA
Ball Grid Array packages require precise solder deposition and reliable solder joint formation.
CSP
Chip Scale Packages continue to shrink in size, demanding increasingly sophisticated solder paste technology.
QFN
Quad Flat No-Lead components require accurate solder volume control and excellent wetting characteristics.
Micro-BGA
Micro-BGA assemblies often require Type 5 or Type 6 solder powder to achieve optimal results.
Recommended Powder Types
Type 4
Suitable for many fine-pitch SMT applications.
Type 5
Designed for advanced electronic assemblies and semiconductor packaging.
Type 6
Ideal for ultra-fine pitch applications and next-generation electronic devices.
Industry Applications
Semiconductor Packaging
Fine-pitch solder paste plays a critical role in advanced semiconductor assembly and packaging processes.
AI Hardware
Artificial intelligence servers and accelerators require high-density PCB designs and reliable solder joints.

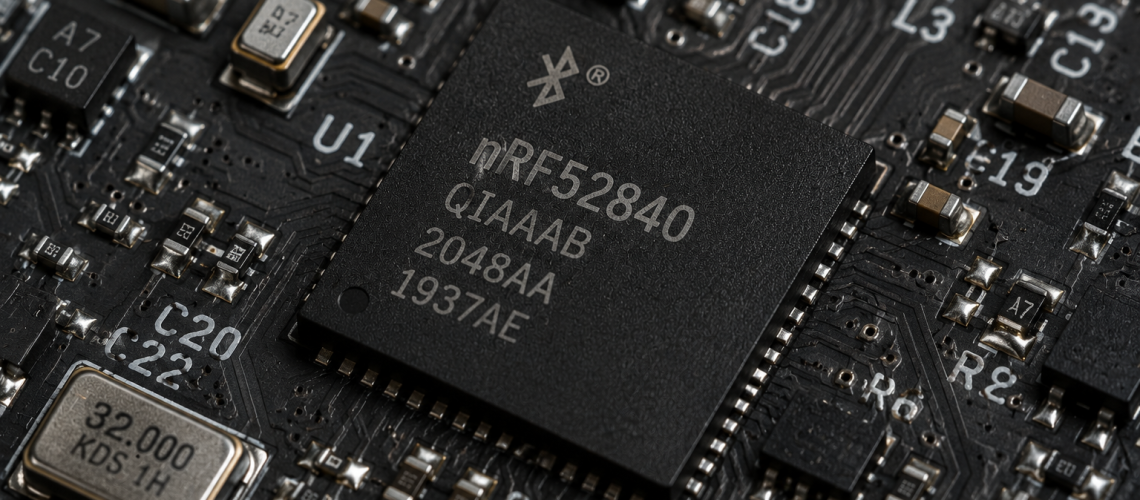

High-End Consumer Electronics
Smartphones, tablets, wearables, and premium electronic devices rely heavily on fine-pitch assembly technologies.
Why Choose JustYou Fine-Pitch Solder Paste?
Our products offer:
- Superior printability
- Low defect rates
- Excellent stencil life
- Stable reflow performance
- Consistent batch quality
- Global technical support
